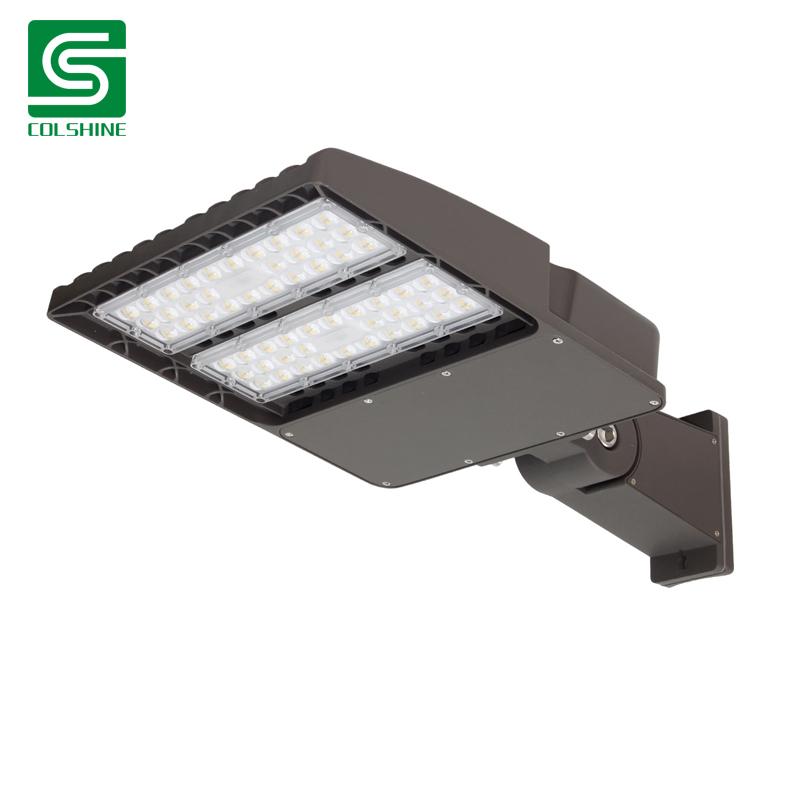

Need to illuminate large outdoor areas? The Colshine LED Shoebox Area Light Fixture is the perfect solution. The LED Shoebox Area Light Fixture features advanced designed optics for improved light utilization and evenness. It is an ideal replacement for HID/ metal halide and reduces wattages as much as 75%. With over 130 LPW the fixture is well-suited for many applications: Roadways, industrial parking lots, residential areas, sidewalks, walkways, etc. Reduce energy, reduce maintenance costs, and improve the appearance of any outdoor environment with Colshine LED Shoebox Area Light Fixture.
Product origin:
Fuzhou, ChinaColor:
BlackShipping port:
Fuzhou, XiamenLead Time:
20-30daysCertification:
UL, ETL,DLC, CE, SAA, RoHSOEM & ODM:
WelcomeProduct Name: Colshine 5years Warranty 100W 150W 200W 300W LED Shoebox Parking Lot Area Light with Photocell Sensor
Product Description:
LED Shoebox Mounting Options
Direct Mounts:
A direct mount allows you to attach your shoebox light directly to an existing pole. That means direct mounts are the easiest way to switch over your existing HPS or metal halide lights to LED.
Installation will involve wiring your light and then attaching the shoebox to the pole using bolts. That simplicity is a major advantage of direct mounts, but it’s important to know that they’re also generally short and designed to be installed in one particular orientation . That means they don’t provide the flexibility of some other mounts.
As their name implies, slip fitters slip on top of a pole rather than being bolted onto the side (like a direct mount). Wiring feeds all the way up the pole, through the mount, and into the back of the lamp.
The main advantage of slip fitters is that they are generally hinged, allowing the lamp to be tilted, pitched, and adjusted.
Slip fitter mounts are ideal for situations in which you’re trying to focus light in a particular area or working in a challenging space.
A trunnion mount is a hinged, square frame made of thin metal. Wiring a trunnion mounted LED shoebox involves threading insulated wires through that frame and into the back of the lamp.
Trunnion mounts are highly versatile and can help you fit powerful lamps into tight spots and direct your beam in a directional manner to achieve lighting goals.
Unlike direct or slip fit mounts, trunnions do expose some wiring to the elements, so they do require some increased maintenance.
Product Specification:
Power: |
SMD 50W / 100W / 150W /200W /250W /300W |
Rated voltage: | AC 85-277V, 50HZ-60HZ |
RA | >80 |
PF | >0.9 |
Lumen: | 100-130lumen/watt |
IP class: | IP65 |
Certificate: | ETL, UL , DLC, CE, RoHS, SAA |
Remarks: |
1. include a high quality isolated constant led driver(with surge protection 6KV) 2. OEM ARE WELCOME. |
Product Details Display:
Area lights are available with different light distributions so that you can select the fixture that will best direct the light where you want it to go. When lighting a street or sidewalk, you want most of the light on the path. Alternatively, in a parking lot setting, you would want a much wider light distribution, allowing both cars and aisles to be well lit. This can help pedestrians feel safer getting back to their cars and reduce incidents in your parking lot.
FAQ:
Q1. how to wire led area lights?
A: First, please check if the led area parking lot lights are with dusk to dawn sensor/dimmable or not . If the light is dusk to dawn sensor/dimmable, then it come with two leads, one for L/N/E, and the another for sensor/dimmer.
Please check the manual carefully before wiring.
Q2.Are you manufacturer?
A: Yes. Our factory is located in Fuzhou. Welcome to visit our factory if your time permitted.
Q3. Do you accept sample order?
A:Sample order is acceptable. Sample can be sent within 1~3 days after payment confirmed.
Q4. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
